Lithium Titanate Power
20,000+ Cycles
10+ Year Life
1,000 Amp CCA
Extreme Life. Extreme
Safety.
Built for Real-World Demands.
Built for Real-World Demands.
Power engineered for:
• Heavy-duty trucking
• Industrial equipment
• Fleet & commercial vehicles
• Heavy-duty trucking
• Industrial equipment
• Fleet & commercial vehicles
Built using Toshiba SCiB® Lithium
Titanate technology for unmatched durability and reliability.
Smart Protection & Reliability
- Proven 20,000+ deep charge cycles
- 10+ year service life in demanding duty cycles
- Partial state-of-charge operation friendly
- Unmatched low temperature operation
Long Life Performance
- Safe at low state of charge
- Automatic shutdown at low SOC
- Maintains reserve power for engine starting
- Reduced battery degradation
- Designed to tolerate real-world operational abuse
Industry-Leading Safety
- Stable lithium titanate chemistry
- Nail-penetration safe
- Crush and puncture tolerant
- Short-circuit safe
- No flame, no thermal runaway
- No explosive venting
- No special heating or cooling required

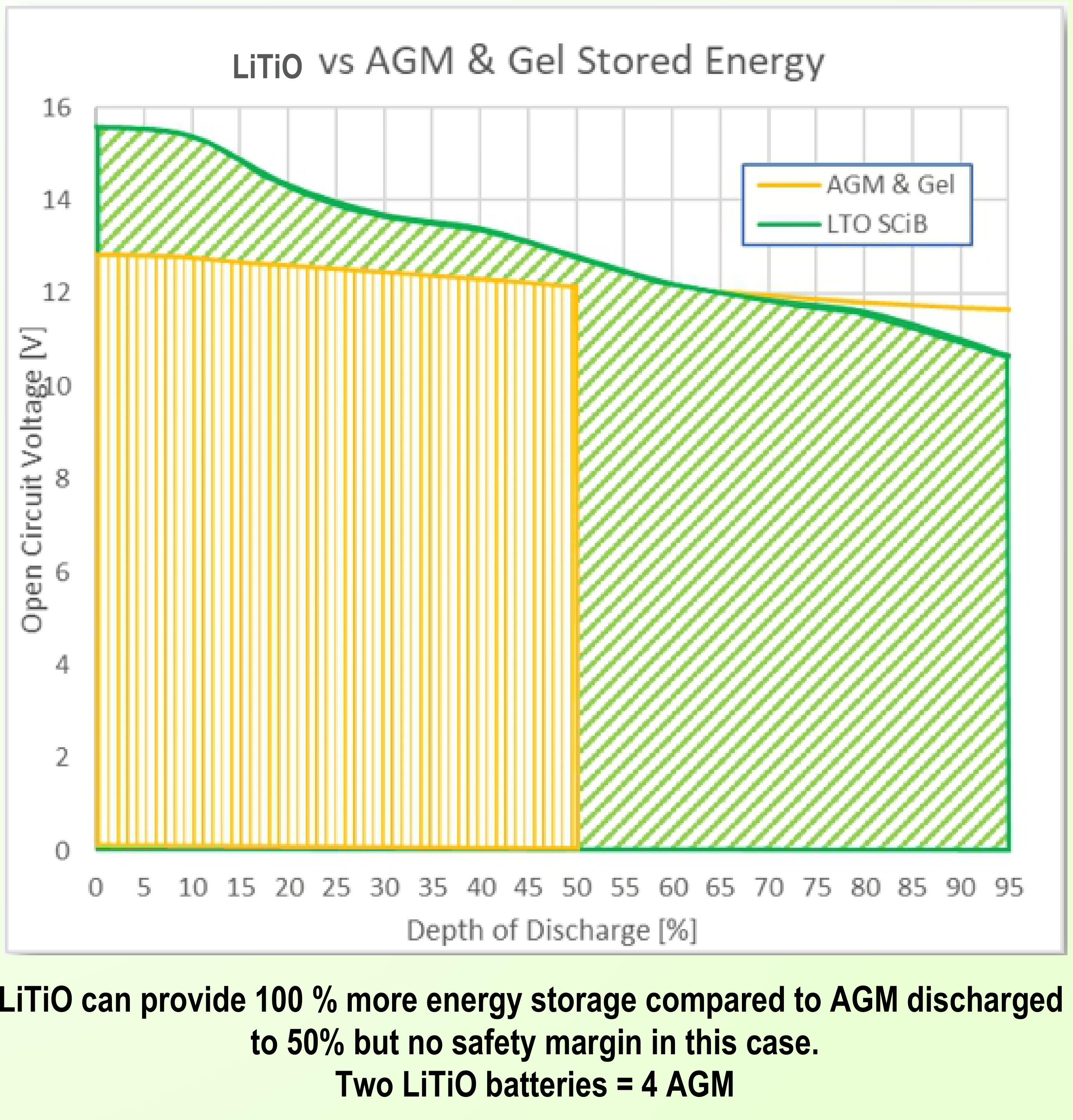

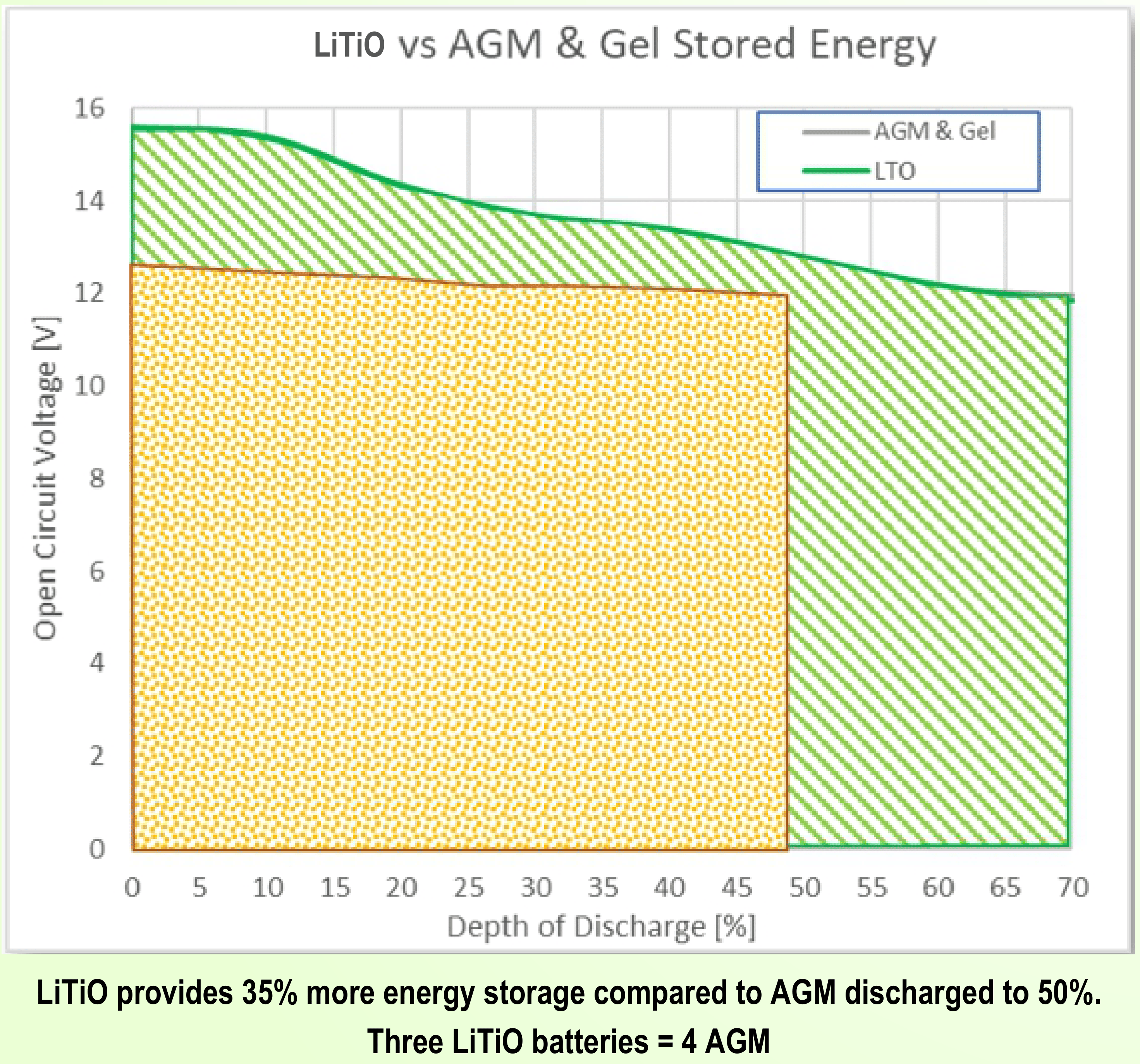

WHY LiTiO™ OVER AGM?
• 100x Cycle Life • Faster Recharge • Better Cold Starts • Longer Fleet
ROI • No Sulfation • Weight 19 lbs less than AGM
• Engineered for Reliability • Safety • Long
Service Life
Watch LiTiO™ in Action
| LiTiO™ Lifetime Operation Truck Starting Battery | |
|---|---|
| Cell type | Lithium Titanium Oxide |
| Rated capacity goal | 100 A·h |
| Rated Energy goal | 1,380 kW·h |
| Rated voltage goal | 13.8 VDC |
| Charging voltage | 15.5 VDC |
| Recommended charging current Input Terminal | 50 to 100 A |
| Maximum charging current Input terminal | 300 A |
| Continuous discharge current | 300 A |
| Maximum discharge current (pass SAE 537, 950 CCA, -18C, 30 seconds maintain above 7.2V) | 1,000 A |
| Internal Resistance (Max Charge) | 2.1 mOhm |
| Internal Resistance (Max Discharge) | 2.2 mOhm |
| Protection voltage (LVD discharge) | 10.8 VDC (settable) |
| Cell operating temperature (charging) | -22 to 140 °F (-30~60°C) |
| Cell operating temperature (discharging) | -22 to 150 °F (-30~65°C) |
| Storage temperature range (<1 month) | -22 to 140 °F (-30~60°C) |
| Storage temperature range (<6 months) | -22 to 125 °F (-30~50°C) |
| Operating humidity range | 10%~90% RH |
| Max Self Discharge (%/month) | 3% Max |
| Case Dimensions (Group 31) | 13.9" X 6.8" X 10" (355 X 173 X 254 mm) |
| Weight goal (Max) | 38 lbs (17.3kg) |
| IP protection (Min) | IP66 |
| Certifications | UL XXXX |
| Shipping class | UN3480, 38.3 |
| Battery Management System | Safety, Memory, Communication, Control |
| Communications | CAN J1939 Bluetooth App |
| Electronic Components | Automotive AEC Q100-Grade 2 (-40 to 105°C) |
| RoHS | No Lead or prohibited metals |
| Cycle life | >20,000 (0.5C charge and discharge) |
| Calander Life (design life) | 10 years |
| Warranty | 5 years |
| Terminal Screws | 3/8"-16 TPI |
